double-ended dental scaler

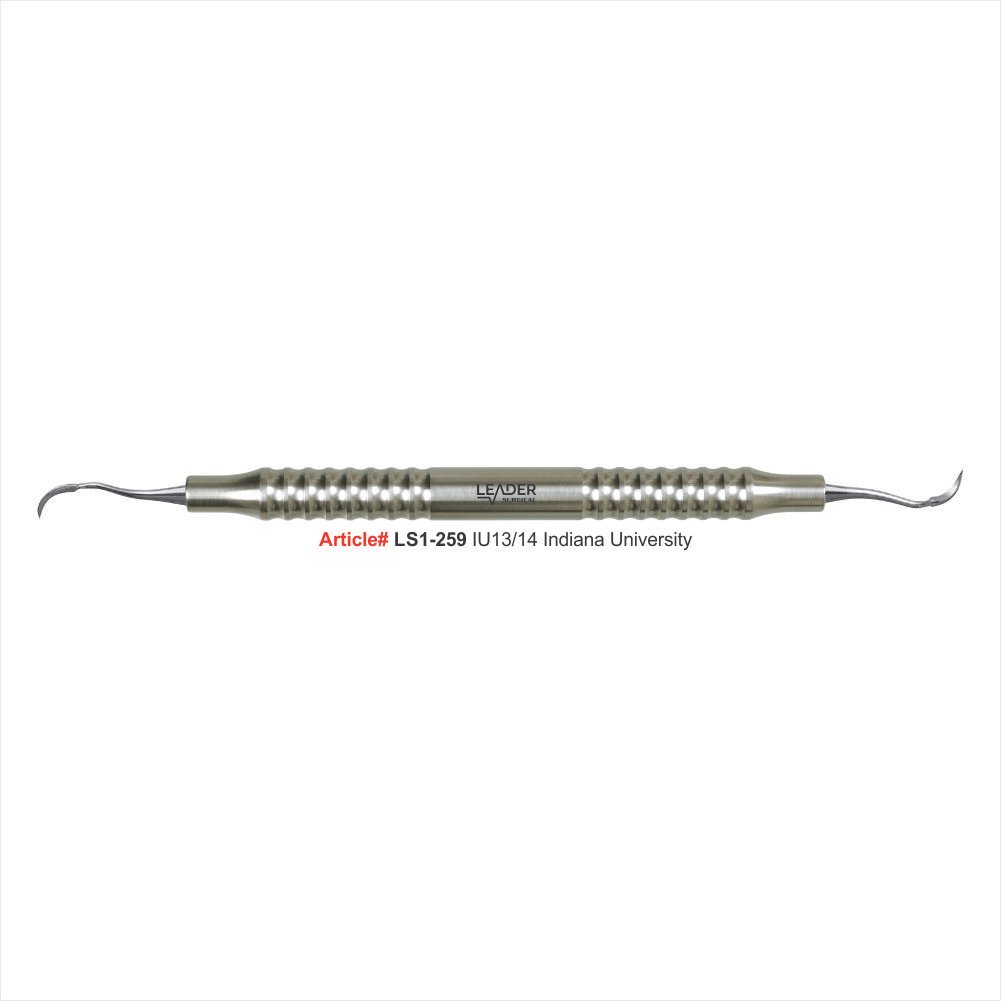

The Double-Ended Dental Scaler IU13/14 Indiana University pattern features two mirror-image universal curette blades, each carrying two parallel cutting edges that meet at a pointed tip — distinguishing it from the rounded toe of the McCall 13/14 pattern it closely resembles. The terminal shank measures 13 mm in length, 1 mm longer than the McCall, giving this pattern deeper subgingival reach without switching to an After Five modification. Blade width measures approximately 1.0 mm with a semi-elliptical cross-section. The handle measures 17 cm, constructed from AISI 420 surgical-grade stainless steel with a knurled grip, fully autoclavable at 134°C.

The 90-degree blade face angle relative to the lower shank allows both cutting edges to remain active on mesial and distal surfaces without flipping the instrument — a key advantage over area-specific Gracey designs. The 13 mm terminal shank clears crown anatomy on posterior teeth without the handle contacting the opposing arch during deep subgingival strokes. Double-Ended Scaler instruments in this IU pattern are favored by clinicians transitioning from McCall curettes who need additional shank reach for moderate-depth pockets. The pointed blade tip rather than a rounded toe gives additional access into tight interproximal contact zones.

Dental hygienists and periodontists use the double-ended dental scaler IU13/14 during subgingival scaling, light-to-moderate calculus removal, and full-mouth debridement on both anterior and posterior teeth. Both working ends adapt to all four root surfaces of each tooth without instrument changes mid-sextant. Dental Scalers & Curettes of this IU13/14 pattern are also standard in dental hygiene school programs for teaching universal curette adaptation and stroke activation on typodont models.

Every Leader Surgical IU13/14 unit leaves production with blade symmetry verified on both working ends — giving clinicians the same cutting performance from the first use to the last resharpening cycle.

Is there a risk of damaging my teeth if I use the scaler incorrectly?
Yes. Excessive pressure or incorrect angles can potentially gouge the enamel or damage the tooth’s pulp. Experts advise using the least force necessary to remove deposits and keeping the tip moving constantly to avoid localized heat or pressure buildup. If you experience pain beyond mild discomfort or persistent bleeding, you should stop immediately.
